Switch Panels and Gauge Pods: Wiring Your Accessories the Right Way

Here is the mistake that shows up over and over: someone buys an eight-switch backlit rocker panel because it looks clean on the dash, wires every accessory to it — rock lights, winch controller, fridge, air compressor — off one 40-amp fuse pulled straight from the battery, and calls the electrical work done. Six months later a chafed wire in the rock light circuit shorts to ground, that one fuse blows, and the winch controller, the fridge, and the interior lights all go dark at the same time, on the trail, at night. Nothing about that panel was wired wrong in the sense of a bad crimp. It was wired wrong in the sense that one switch panel became one point of failure for four unrelated systems.

A switch panel and a gauge pod are the visible part of an electrical system, not the system itself. Get the part behind the dash right and the panel is just a convenience. Get it wrong and the panel is a liability with a backlit logo on it.

The panel is not the wiring diagram

It helps to separate two things that look like one product: the switching (what your thumb touches) and the load wiring (where the actual current flows). A rocker switch, even a heavy-duty one, is rated for a fraction of the current a winch or an air compressor draws. The switch is there to control a relay, not to carry the accessory's full load itself — that part is covered well in our wiring breakdown for auxiliary lights, and the same rule applies to every accessory you add here, not just lights.

What that means in practice: the box you mount in the dash is the control layer. The wire gauge, the fuse or breaker size, and the ground path are decided by what's on the other end of that switch, not by what the switch panel's marketing copy says it can handle. A panel rated for "200 amps total" is describing its internal bus bar, not giving you permission to skip individual fusing on each circuit.

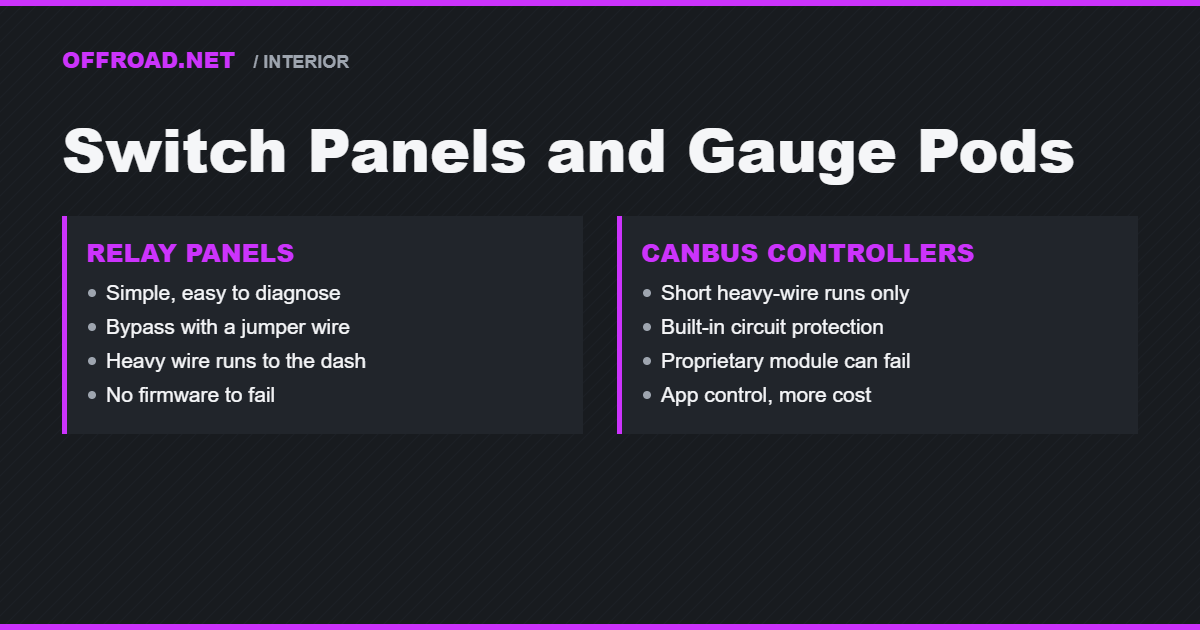

Relay panels vs. CANbus controllers

There are two real architectures on the market, and the choice affects how much wire you're running and how you'll troubleshoot a failure five years from now.

Conventional relay panels

A traditional switch panel has a bank of relays built into the housing. Power comes into the panel from a fused source, each relay switches one circuit, and heavy-gauge wire runs from the panel out to each accessory and back. The panel itself sits wherever you mount it — usually the dash or an overhead console — which means the load-carrying wire has to travel all the way from the battery area, through the firewall, up to the panel, and back out to wherever the accessory lives. That's a lot of heavy wire crossing a lot of the vehicle, and every foot of it is a place a wire can chafe, pinch, or work itself loose over years of trail vibration.

The upside is that a relay panel is dead simple to diagnose. A relay either clicks and passes power or it doesn't. You can pull it, bench-test it, or bypass it with a jumper wire in a parking lot if you have to. There's no firmware, no proprietary module, and no dealer-only diagnostic tool standing between you and a fix.

CANbus / smart controllers

Systems built around a data bus (the sPOD-style layout is the one most people have seen) flip the wiring around. A power distribution module mounts near the battery, and that's where all the heavy wiring terminates — short runs, close to the source. The switch pad at the dash talks to that module over a thin signal wire or a small data cable, not a load-carrying conductor. The result is genuinely less bulk wire snaking through the cab, and most of these systems layer in built-in circuit protection, diagnostics, and sometimes smartphone control.

The tradeoff is real, not marketing spin. You've traded a simple mechanical relay for an electronic module. When it fails — and any electronics package eventually can, especially one living under a hood through years of heat cycling and vibration — you are troubleshooting a sealed unit with a company-specific diagnostic process instead of swapping a $10 relay you can buy at any parts counter. If you wheel somewhere remote and value being able to fix your own electrical system with parts from a gas station, that's worth weighing against the cleaner wiring.

Neither is objectively better. A rig with six accessories and an owner who's comfortable with basic 12-volt work is well served by a relay panel. A rig with a dozen circuits, an owner who wants app control and clean documentation, and a budget that supports it is well served by a CANbus system. Pick based on circuit count and your own tolerance for troubleshooting complexity, not based on which one looks nicer in a photo.

Fuse the circuit, not the panel

This is the mistake from the opening paragraph, and it's worth stating as a rule: every accessory gets its own fuse, sized to that accessory's actual draw, placed as close to the power source as practical. Not one fuse for the whole panel. Not one fuse for "the lighting circuits" lumped together. One fuse per circuit.

The reasoning is simple once you see it: a fuse's job is to fail before the wire does, protecting that one circuit's wiring from a short. If four accessories share a fuse, that fuse has to be sized for the combined draw of all four, which means it's oversized for any one of them individually — so a short in the smallest-draw accessory (often the lighting circuit, since LED pods pull relatively little current) won't trip the shared fuse until the wire feeding that specific light has already overheated. Separate fuses mean a failure in one circuit takes down exactly that circuit and nothing else. If you already have a fuse block installed as part of a dual-battery or auxiliary power setup, this is where new accessory circuits should land — on their own breaker in that block, not spliced onto an existing feed because it happened to be nearby.

Where the panel actually goes

Mounting location gets treated as an afterthought and it shouldn't be. A few things to check before you cut or drill anything:

Airbag clearance. A factory blank panel near the dash or center stack is not a guaranteed empty cavity. Knee airbags, side-curtain wiring harnesses, and impact sensors routinely run behind trim that looks like "extra space." Pull the panel and look before you assume.
Reach without looking away. If flipping a switch means taking your eyes off the trail for more than a glance, it's in the wrong spot. Overhead consoles and lower dash panels within easy reach of the driver's hand beat anything that requires leaning or searching.
Airflow and defrost. Panels mounted low on the dash or in the console area have a way of ending up directly in front of a vent. Check with the HVAC running before you commit to a spot.
Glare. Glossy rocker switches and chrome bezels catch low sun and headlights from other vehicles. A matte finish or a slightly angled mount avoids putting a mirror in your peripheral vision at dusk.

Gauge pods: pillar, dash-top, and A-pillar

Gauge pods solve a different problem than switch panels — they're about seeing a number, not switching a circuit — but they get bundled into the same "interior electrical" project often enough to cover here.

The first decision is mechanical versus electronic. A mechanical gauge reads directly off a sending line (oil pressure, for example, run to a physical gauge through a small hose) with essentially no lag and no dependency on the vehicle's electrical system. An electronic gauge reads a sender's voltage or resistance and displays it digitally or via a stepper-motor needle; it's easier to install and route since you're running a wire instead of a pressure line, but you're adding a second sender in parallel with the factory one in most cases, since manufacturers rarely provide a spare port.

That last point trips people up: finding a place to actually thread a sender in is often the hard part of a gauge install, not the gauge itself. Some intake manifolds and radiators have unused ports; a lot don't, and you're looking at a T-fitting adapter or a sender that reads off an existing sensor's circuit rather than adding true redundancy.

On placement, a pillar pod puts the gauge close to your natural sightline but permanently reduces visibility out of that corner of the windshield — keep it to one or two gauges, not a bank of four stacked on the A-pillar. A pod on top of the dash is easier to install and doesn't affect visibility as much, but it's further from your eyeline and catches glare off the windshield during the day. Wire any added gauge to switched (ignition-on) power, not a constant accessory feed, so you're not troubleshooting a mystery parasitic draw six months later because a gauge was quietly powered all the time.

Labeling and backlighting matter more than they look like they should

An unlabeled bank of identical rocker switches is fine in daylight when you built the thing and remember which is which. It stops being fine on a night run when you need the winch light off immediately and you're flipping three switches to find it. Engrave or laser-etch labels rather than relying on a printed sticker, which fades and peels inside a hot cab within a season or two. Group switches by function — lighting together, recovery-related together, comfort or convenience items together — rather than by whatever order you happened to install them, and keep the backlighting dim enough that flipping a switch at night doesn't blow out your adapted night vision the way a bright white LED indicator will.

A build order that keeps you from redoing it

Most of the rework people end up doing on their electrical setup comes from skipping the planning step and wiring accessories one at a time as they're purchased. A better order:

List every accessory you actually plan to run, current and near-future, and add up the realistic combined draw.
Decide between a relay panel and a CANbus controller based on that circuit count and your own troubleshooting comfort, not on appearance.
Mount the fuse block or power module near the battery, where the heavy wiring is shortest.
Run heavy-gauge wire on the shortest practical path to each accessory, protected and secured along the way.
Run the thin signal or trigger wire back to the dash location you've already checked for airbag clearance, reach, airflow, and glare.
Mount the panel and any gauge pods, label every switch, and test each circuit individually — one at a time, not all at once — before buttoning the interior trim back up.

Do it in that order and the panel you end up with is a convenience sitting on top of a system you actually understand. Do it in reverse — buy the panel first, then figure out the wiring as accessories show up — and you get the rat's nest, the shared fuse, and the 2 a.m. troubleshooting session on a trail with no cell signal.
