Overland Bed Rack For 2014-2024 Chevy Colorado

No reviews

$849.99

I have read the Important Notes and Verified My Vehicle Fitment

Product details

Type Bed Rack
Vendor Cali Raised LED
SKU 39302157008938

Use this text to encourage communication or promote sharing on social networks.

You can also add links

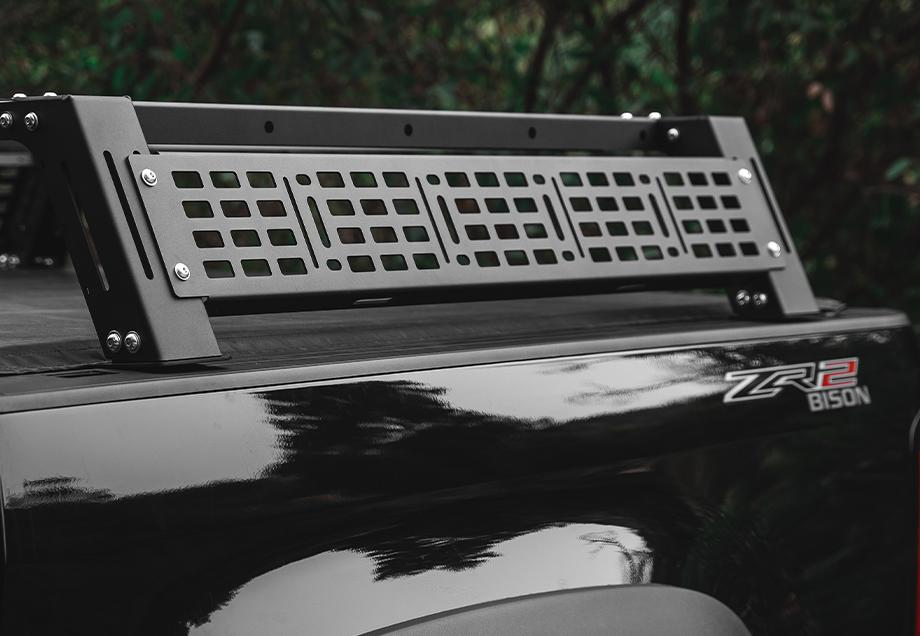

Hit any adventure equipped for anything with our Overland Bed Rack System. Our bed rack system is CAD designed, CNC cut, bent and welded to perfection providing a seamless fit. Our bed racks are up to 80% aluminum providing a light weight but super strong bed rack for mounting your RTT, Rotopax, tools, recovery gear and more. They also utilize our unique T-Slot design which allows for endless possibilities in mounting additional items to the rack. Combine all these great features with our 2-year warranty on all vehicle mounting systems so you can drive into the wilderness well equipped.

PLEASE SEE MORE INFORMATION IN THE TABS BELOW

Approximate weight capacity: 1,100lbs

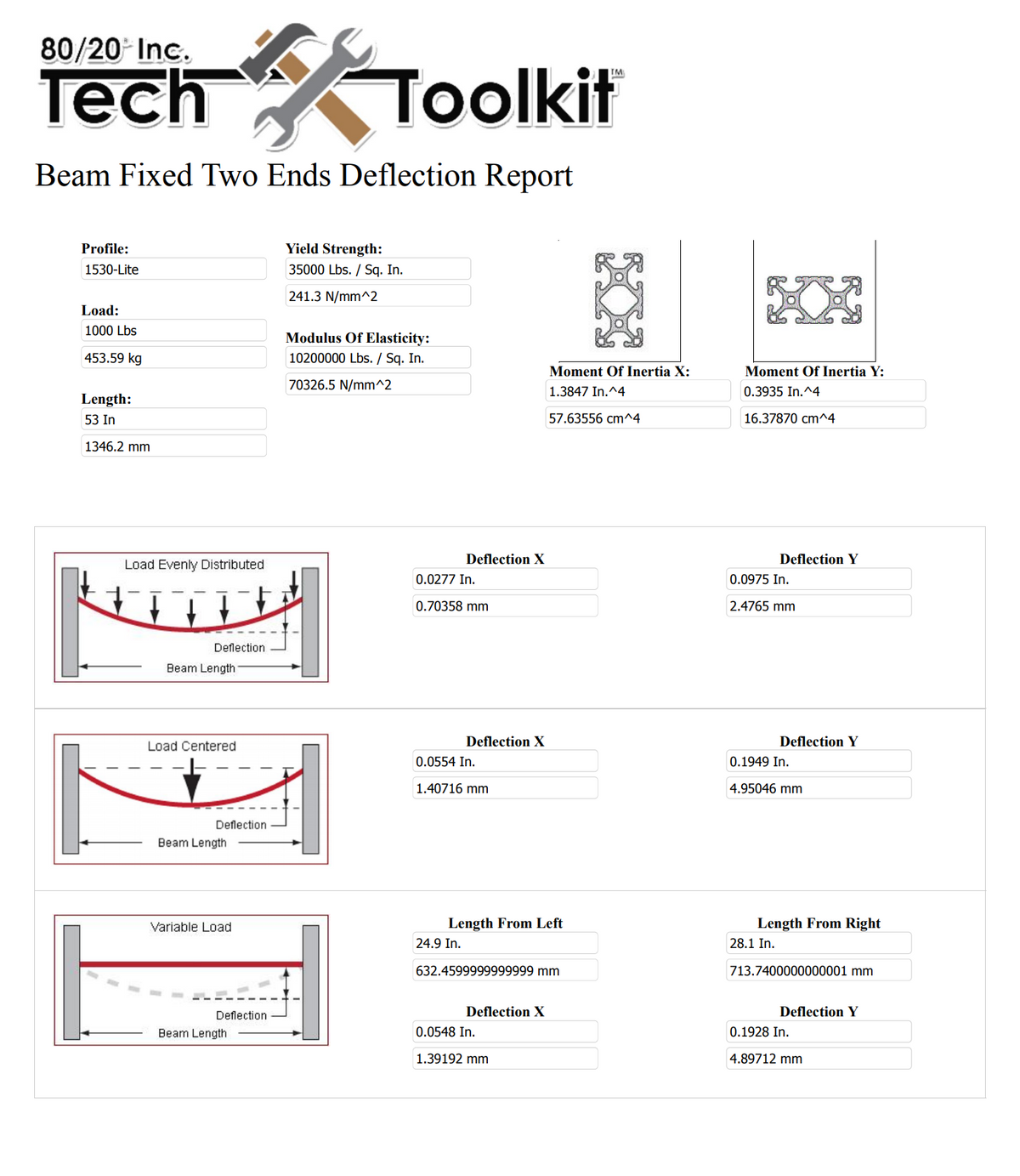

See the report on extrusion bars' weight limit performance ( DEFLECTION REPORT ). This provides all the technical data for the extrusion which is the "weakest link" in the bed rack, though they are not weak at all! Running the simulation for 1000lbs on a 53" extrusion supported on each end. Our bed rack mounts them in the Deflection Y configuration. This is 1000lbs applied to a single bar at the weakest point in the center and it shows a deflection of 0.195" and no failure.

NOTE:
We do not have a full analysis of our bed rack run through a simulation at this time, however, you can see that our rack can handle quite a bit of weight. Many customers run a large RTT up top with hi lifts or gas or recovery boards along the sides along with 360 degrees of lighting.
