Plug and Play Switch Illumination Harness

No reviews

$15.99

I have read the Important Notes and Verified My Vehicle Fitment

Product details

Type Wiring
Vendor Cali Raised LED
SKU 39506469421098

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Having a hard time getting those aftermarket switches to light up like your factory switches? Are you fed up with splicing into your factory wiring to get those switches working? We have a solution!

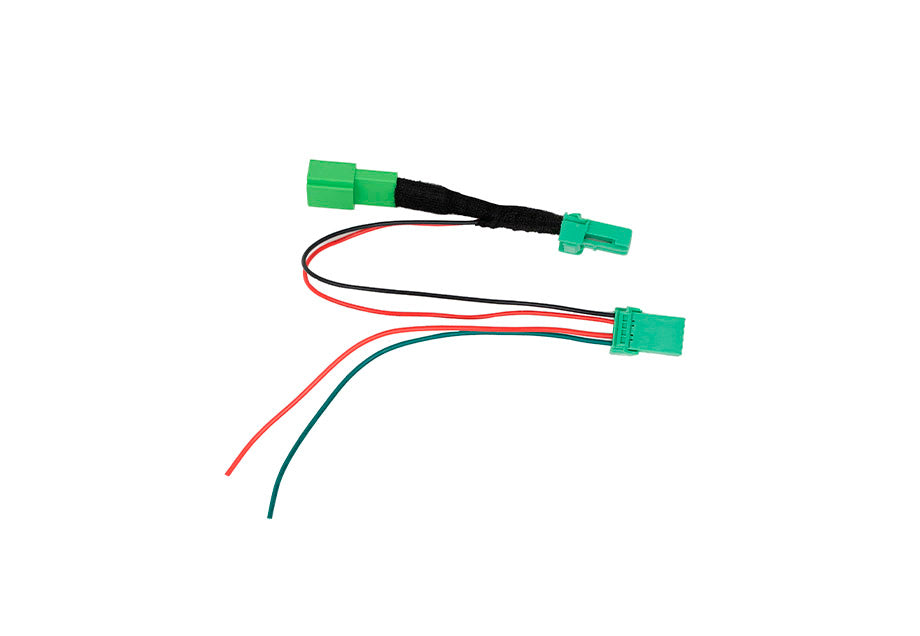

These are plug-and-play harnesses that are designed to illuminate your aftermarket switches without the need to use Vampire Clips, T-taps, or any other device that might cut one of your tiny factory wires.

How It Works:

Each harness is intended to be plugged into the back of a factory connector and “borrow” the factory illumination circuit that runs through that connector.
Included in each kit is an extra green connector that completely replaces the one you get with your CH4x4/Cali-Raised/AOB/MIC-Tuning Toyota-style switches so there is no more guesswork when it comes to illuminating your switches.
When you use these harnesses your new switch(es) will light up with the rest of the switches in your truck and be dimmable using the dimmer on your dash.
The left of the steering wheel harness allows you to illuminate 1 aftermarket switch without splicing.

NOTE: Works for 3rd Gen Tacoma Only.

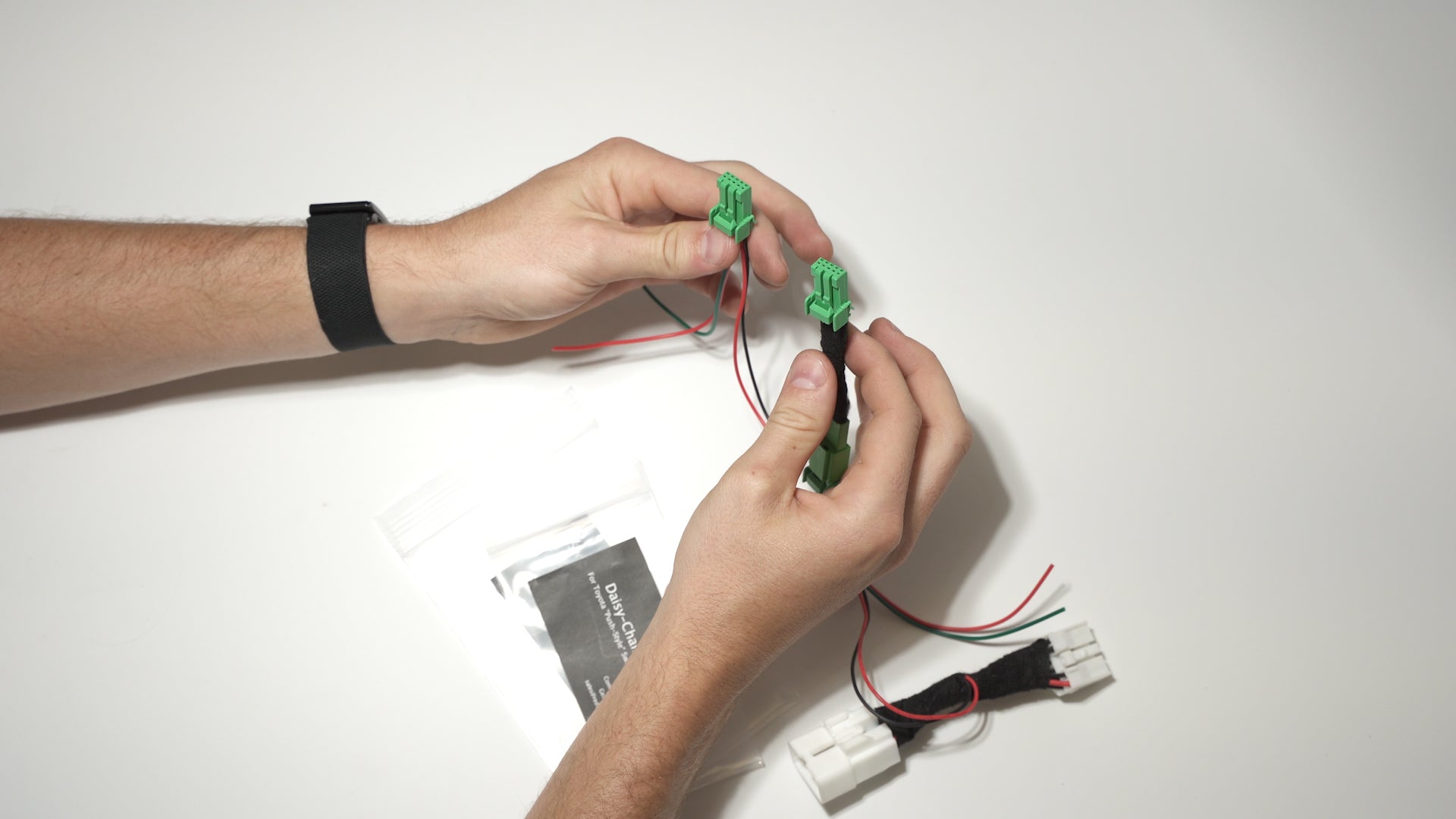

If you are building a switch panel or need to illuminate more than one switch, you can order our daisy chain harness to expand the illumination to 1 additional switch.
You can add or subtract multiple daisy chains at any point in your truck build.
As of July 2021, we have safely illuminated 7 switches using a base harness + 6 daisy chains and that is the current recommended limit for this system.
